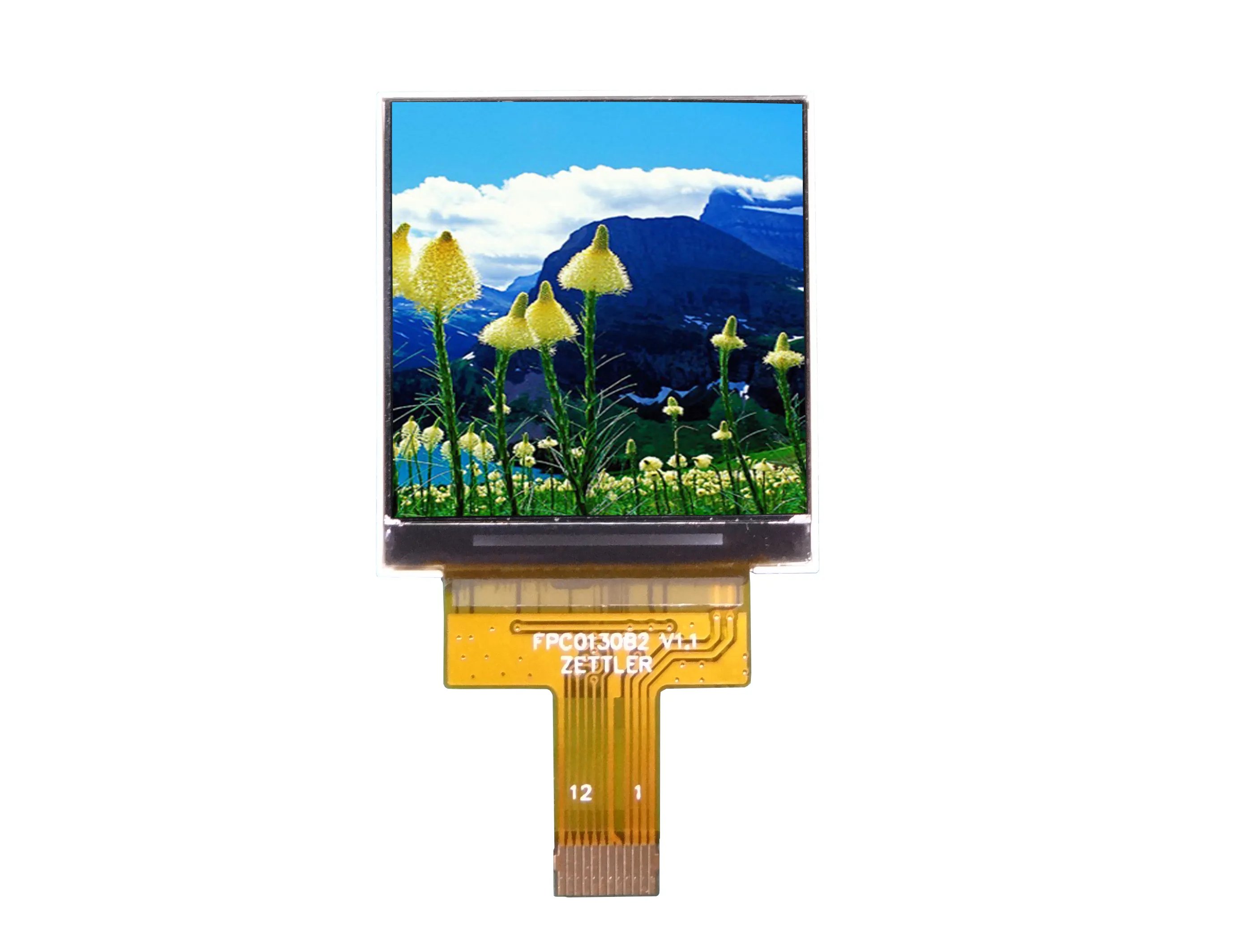

ATM0130B3 Product Page
Resources
Datasheet
| Product Specifics | |
|---|---|
| Overall Module Size | 1.3 |
| Resolution | 240 X 240 |
| Aspect Ratio | 1:01 |
| Touch | None |
| Brightness (Nits) | 500 |
| Contrast | 800 |
| Backlight | - |
| Viewing Angle | +80/-80 +80/-80 |
| Weight | |
| Operation Temperature (℃) | -20~+70 |
| Storage Temperature (℃) | -30~+80 |
| Interface | RGB/MCU optional |
| Active Area | 23.4X23.4mm |
| Outline Dimension | 26.85X29.55X1.73mm |
| Viewing Direction | Free |
| Bonding Type | COG |
| Pixel Configuration | Stripe |
