LCD Graphic Display Module

All of our graphic modules can be supported with a variety of colors and standard options with and without backlights. We offer three standard display modes (transflective, transmissive, and refelctive) to accomdate all applications and environments.

These are our standard parts, for custom solutions contact us.

 All Color Options

Selected Filters:

Part Number	Drawing	Series	Outline Dimensions (mm)	Viewing Area (mm)	Supply Voltage	Format	Controller IC	Polarizer Type	Backlight	Color	Fluid Type	Dot Size	Dot Pitch	Duty
AGM1212I-FL-YBW		AGM1212I	92.0X106.0X14.5mm	73.0 x 73.0	5.0V/3.3V	128 x 128	T6963C	Transflective Positive	LED	Yellow/Green	Yellow Mode STN	0.50 x 0.50 mm	0.55 x 0.55 mm	1/128
AGM1232D-RN-GBD	-	AGM1232D	84.0x44.0x13.0mm	60.0 x 18.0	5.0V/3.3V	122 x 32	PT6520	Reflective	None	-	Grey Mode STN	0.40 x 0.45 mm	0.44 x 0.49 mm	1/32
AGM1232G-FL-GBH		AGM1232G	84.0x44.0x13.0mm	60.0 x 18.0	5.0V/3.3V	122 x 32	PT6520	Transflective Positive	LED	Yellow/Green	Grey Mode STN	0.40 x 0.45 mm	0.44 x 0.49 mm	1/32
AGM1232G-FLW-FTH		AGM1232G	84.0x44.0x13.0mm	60.0 x 18.0	5.0V/3.3V	122 x 32	PT6520	Transflective Positive	LED	White	FSTN	0.40 x 0.45 mm	0.44 x 0.49 mm	1/32
AGM1264F-FL-YBW		AGM1264F	93.0x70.0x14.0mm	70.7 x 38.8	5.0V/3.3V	128 x 64	KS0108B	Transflective Positive	LED	Yellow/Green	Yellow Mode STN	0.48 x 0.48 mm	0.52 x 0.52 mm	1/64
AGM1264F-FLB-FTX		AGM1264F	93.0x70.0x14.0mm	70.7 x 38.8	5.0V/3.3V	128 x 64	KS0108B	Transflective Positive	LED	Blue	FSTN	0.48 x 0.48 mm	0.52 x 0.52 mm	1/64
AGM1264R-FLB-FBW		AGM1264F	93.0x70.0x14.0mm	70.7 x 38.8	5.0V/3.3V	128 x 64	KS0108B	Transflective Positive	LED	Blue	FSTN	0.48 x 0.48 mm	0.52 x 0.52 mm	1/64
AGM2464B-FL-YBX		AGM2464B	180.0x65.0x14.5mm	133.0 (W) X 39.0 mm (H)	5.0V/3.3V	240 x 64	RA6963	Transflective Positive	LED	Yellow/Green	Yellow Mode STN	0.49 x 0.49 mm	0.53 x 0.53 mm	1/64
AGM2464B-NLW-BBX		AGM2464B	180.0x65.0x14.5mm	133.0 (W) X 39.0 mm (H)	5.0V/3.3V	240 x 64	RA6963	Transmissive Negative	LED	White	Blue Mode STN	0.49 x 0.49 mm	0.53 x 0.53 mm	1/64
AGM2464BD-FLW-GBX		AGM2464B	180.0x65.0x14.5mm	133.0 (W) X 39.0 mm (H)	5.0V/3.3V	240 x 64	RA6963	Transflective Positive	LED	White	Grey Mode STN	0.49 x 0.49 mm	0.53 x 0.53 mm	1/64
AQM1016A-FLW-FTX	-	AQM1016A	43.5x57.0x8.7mm	32.0 x 50.0	3.0V	100 x 160	ST7528	Transflective Positive	LED	White	FSTN	0.275 x 0.275 mm	0.29 x 0.29 mm	1/100
AQM1056B-FLW-FBX		AQM1056B	36.6x28.0x9.5mm	32.6 x 17.6	5.0V/3.3V	106 x 56	ST7565P	Transflective Positive	LED	White	FSTN	0.27 x 0.27 mm	0.29 x 0.29 mm	1/65
AQM1064A-FN-FBS	-	AQM1064A	48.0x40.0x2.1mm	44 x 27	3.0V	100 x 64	-	Transflective	None	-	FSTN	0.33 x 0.33 mm	0.36 x 0.36 mm	1/65
AQM1212K-FLW-FBH	-	AQM1212K	76.04x77.34x10.07mm	58.48 x 58.48	5.0V/3.3V	128 x 128	ST7541	Transflective Positive	LED	White	FSTN	0.38 x 0.38 mm	0.41 x 0.41 mm	1/128
AQM1264C-FL-YBW		AQM1264C	93.7x52.6x6.8mm	70.7 x 38.8	3.3V	128 x 64	NT7538H	Transflective Positive	LED	Yellow/Green	Yellow Mode STN	0.50 x 0.50 mm	0.52 x 0.52 mm	1/65
AQM1264C-FL-YBX-T		AQM1264C	93.7x52.6x6.8mm	70.7 x 38.8	3.3V	128 x 64	NT7538H	Transflective Positive	LED	Yellow/Green	Yellow Mode STN	0.50 x 0.50 mm	0.52 x 0.52 mm	1/65
AQM1264J-RN-FTX		AQM1264J	79.2x52.6x5.45mm	70.7 x 38.8	3.3V	128 x 64	NT7538H	Reflective	None	-	FSTN	0.50 x 0.50 mm	0.52 x 0.52 mm	1/65
AQM1264PA-NLW-BBW	-	AQM1264PA	89.7x49.8x6.7mm	66.8 x 35.5	3.0V	128 x 64	ST7565P	Transmissive Negative	LED	White	Blue Mode STN	0.48 X 0.48 mm	0.50 x 0.50 mm	1/65
AQM1696A-FLW-FBH	-	AQM1696A	98.48x67.79x9.2mm	74.31 x 44.87	3.0V	160 x 96	NT7538H	Transflective Positive	LED	White	FSTN	0.40 x 0.38 mm	0.43 x 0.41 mm	1/96
AQM2416D-FLW-FBE-T		AQM2416D	98.7x64.2x9.8mm	78.5 (W) x 47.5 mm (H)	3.3V	240 x 160	-	Transflective Positive	LED	White	FSTN	0.270 x 0.255 mm	0.290 x 0.275 mm	1/160
ATM2412B-NLW-FFW	-	ATM2412B	144.0X104.0X10.0mm	113.5 x 64.0	5.0V/3.3V	240 x 128	RA6963	Transmissive Negative	LED	White	FSTN	0.40 X 0.40 mm	0.462 x 0.462 mm	-

Part Number	Series	Outline Dimensions (mm)	Viewing Area (mm)	Supply Voltage	Format	Controller IC	Polarizer Type	Backlight	Color	Fluid Type
ACM0802C-FL-GBW	ACM0802C	58.0X32.0X8.6mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM0802C-FL-GBX	ACM0802C	58.0X32.0X8.6mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM0802C-FL-GTW	ACM0802C	58.0X32.0X8.6mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM0802C-FL-YBW	ACM0802C	58.0X32.0X8.6mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM0802C-FL-YTW	ACM0802C	58.0X32.0X8.6mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM0802C-RN-GBW	ACM0802C	58.0X32.0X12.8mm	38.0 x 16.0	5.0V/3.3V	8 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1601C-FL-YBW	ACM1601C	80.0X36.0X9.5mm	64.5 x 14.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1601C-NLW-BBW	ACM1601C	80.0X36.0X9.5mm	64.5 x 14.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM1601C-NLW-BBX	ACM1601C	80.0X36.0X9.5mm	64.5 x 14.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM1601C-RN-GBW	ACM1601C	80.0X36.0X13.5mm	64.5 x 14.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1601C-RN-YBW	ACM1601C	80.0X36.0X13.5mm	64.5 x 14.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM1601H-FL-YBW	ACM1601H	122.0X33.0X9.5mm	99.0 x 13.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1601H-FL-YBX	ACM1601H	122.0X33.0X9.5mm	99.0 x 13.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1601H-ML-YTW	ACM1601H	122.0X33.0X9.5mm	99.0 x 13.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Transmissive Positive	LED	Yellow/Green	Yellow Mode STN
ACM1601H-RN-GTW	ACM1601H	122.0X33.0X14.5mm	99.0 x 13.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1601H-RN-YBW	ACM1601H	122.0X33.0X14.5mm	99.0 x 13.0	5.0V/3.3V	16 x 1	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM1602B-FL-GBW	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1602B-FL-YBW	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602B-FL-YBW-AK	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602B-FLW-FBW	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	White	FSTN
ACM1602B-FLW-FBX	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	White	FSTN
ACM1602B-ML-YBW	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602B-NLW-BBW	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM1602B-NLW-FBX	ACM1602B	84.0X44.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Negative	LED	White	FSTN
ACM1602B-RN-GBW	ACM1602B	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1602B-RN-GBX	ACM1602B	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1602B-RN-GTW	ACM1602B	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1602B-RN-YBW	ACM1602B	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM1602B-RN-YBX	ACM1602B	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM1602K-FL-GBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1602K-FL-GBX	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1602K-FL-GTW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1602K-FL-GTX	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1602K-FL-YBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602K-FLW-FBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	White	FSTN
ACM1602K-FLW-GBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	White	Grey Mode STN
ACM1602K-ML-YBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602K-NLW-BBW	ACM1602K	80.0X36.0X9.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM1602K-RN-GBW	ACM1602K	80.0X36.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1602KC-NLW-BBW-R	ACM1602KC	84.0X44.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM1602KW-FL-YBE	ACM1602KW	80.0X36.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602S-FL-YBW	ACM1602S	122.0X44.0X9.5mm	99.0 x 24.0	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1602S-FLW-FBW	ACM1602S	122.0X44.0X9.5mm	99.0 x 24.0	5.0V/3.3V	16 x 2	Sitronix ST7066U	Transflective Positive	LED	White	FSTN
ACM1602Y-RN-GBW	ACM1602Y	71.5X36.0X13.5mm	64.5 x 16.4	5.0V/3.3V	16 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1604C-FL-YBW	ACM1604C	87.0X60.0X9.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1604C-RN-GTW	ACM1604C	87.0X60.0X13.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM1604C-RN-YBW	ACM1604C	87.0X60.0X13.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM1604D-FL-GBW	ACM1604D	87.0X60.0X9.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM1604D-FL-YBW	ACM1604D	87.0X60.0X9.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM1604D-FL-YBX	ACM1604D	87.0X60.0X9.5mm	61.8 x 25.2	5.0V/3.3V	16 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2002D-FL-YBW	ACM2002D	116.0X37.0X9.5mm	83.0 x 18.6	5.0V/3.3V	20 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2002D-ML-YTW	ACM2002D	116.0X37.0X9.5mm	83.0 x 18.6	5.0V/3.3V	20 x 2	Sitronix ST7066U	Transmissive Positive	LED	Yellow/Green	Yellow Mode STN
ACM2002D-RN-GBW	ACM2002D	116.0X37.0X13.5mm	83.0 x 18.6	5.0V/3.3V	20 x 2	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM2002E-FL-GBX	ACM2002E	116.0X37.0X9.5mm	83.0 x 18.6	5.0V/3.3V	20 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM2002E-FL-YBW-R	ACM2002E	116.0X37.0X9.5mm	83.0 x 18.6	5.0V/3.3V	20 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2002R-FL-GTW	ACM2002R	180.0X40.0X9.5mm	149.0 x 23.0	5.0V/3.3V	20 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM2004D-FL-GBW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM2004D-FL-GTW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM2004D-FL-YBE	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004D-FL-YBW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004D-FL-YBX	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004D-FL-YTW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004D-FL-YTX	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004D-FLW-FBW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	White	FSTN
ACM2004D-NLW-BBW	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM2004D-NLW-BBW-R	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM2004D-NLW-BBX	ACM2004D	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM2004D-RN-GBW	ACM2004D	98.0X60.0X14.0mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM2004D-RN-GBX	ACM2004D	98.0X60.0X14.0mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM2004D-RN-YBW	ACM2004D	98.0X60.0X14.0mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Reflective	None	-	Yellow Mode STN
ACM2004F-FL-GBW	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM2004F-FL-YBW	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004F-FL-YBW-R	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004F-FL-YBX	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004F-FLW-GBW	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	White	Grey Mode STN
ACM2004F-FLW-GBX	ACM2004F	146.0X62.5X9.0mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	White	Grey Mode STN
ACM2004F-RN-GBW	ACM2004F	146.0X62.5X13.5mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM2004F-RN-GTX	ACM2004F	146.0X62.5X13.5mm	123.0 x 42.5	5.0V/3.3V	20 x 4	Sitronix ST7066U	Reflective	None	-	Grey Mode STN
ACM2004G-FL-YBW-R	ACM2004G	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM2004G-NLW-BTW	ACM2004G	98.0X60.0X9.5mm	76.0 x 25.2	5.0V/3.3V	20 x 4	Sitronix ST7066U	Transmissive Negative	LED	White	Blue Mode STN
ACM4002E-FL-YBW	ACM4002E	182.0X33.5X9.5mm	154.5 x 16.5	5.0V/3.3V	40 x 2	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM4004E-FL-GBW	ACM4004E	190.0X54.0X9.5mm	147.0 x 29.5	5.0V/3.3V	40 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Grey Mode STN
ACM4004E-FL-YBW	ACM4004E	190.0X54.0X9.5mm	147.0 x 29.5	5.0V/3.3V	40 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN
ACM4004H-FL-YBW-R	ACM4004H	190.0X54.0X9.5mm	147.0 x 29.5	5.0V/3.3V	40 x 4	Sitronix ST7066U	Transflective Positive	LED	Yellow/Green	Yellow Mode STN

Graphic Modules

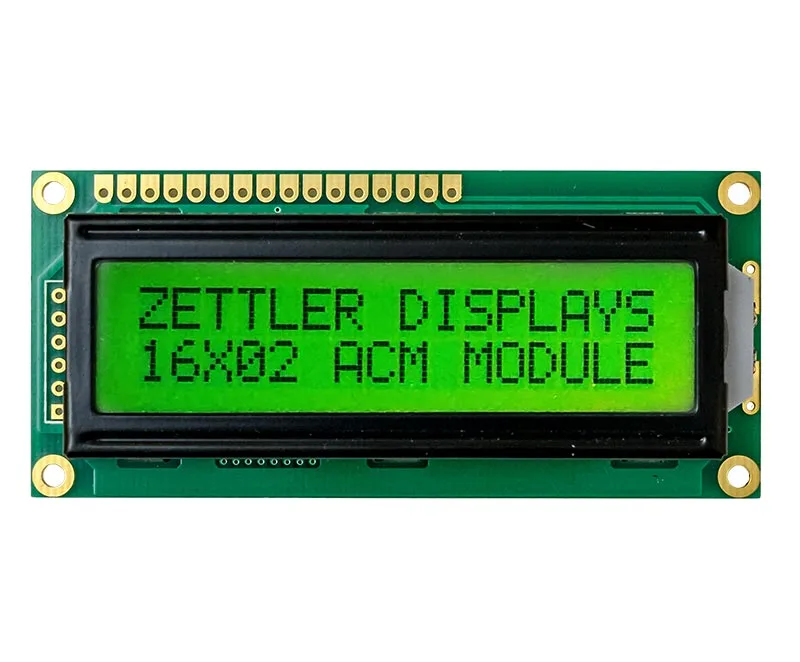

Character Modules
